Open and Flexible solutions available to developers and engineers for embedded measurement

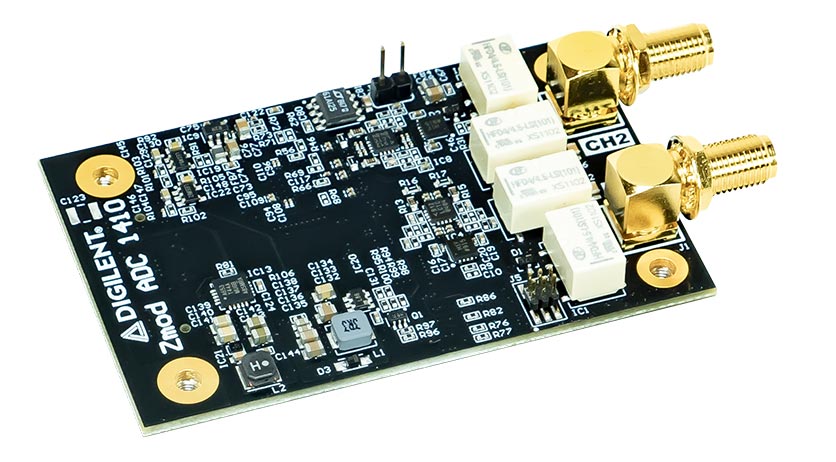

Zmod Scope 1410 SYZYGY-compatible Dual-channel 14-bit Analog-to-Digital Converter Module

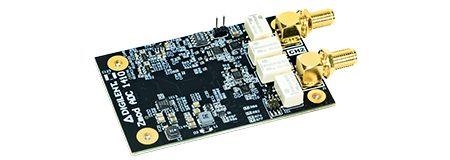

What is the Zmod Scope 1410?

The Zmod Scope 1410 is one of Digilent's first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.

The Zmod Scope 1410 is equipped with Analog Devices AD9648, the dual channel, high speed, low power, 14-bit, 105MS/s Analog to Digital Converter (ADC). Driven by the SYZYGY carrier, the Zmod ADC can acquire two simultaneous signal

(1MΩ, ±25V, single-ended, 14-bit, 100MS/s, 70MHz+ bandwidth). Analog inputs can be connected to a circuit using SMA cables.

When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR products. By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.

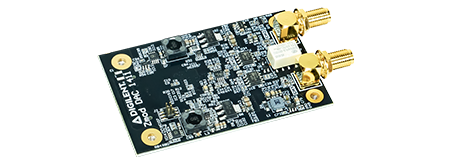

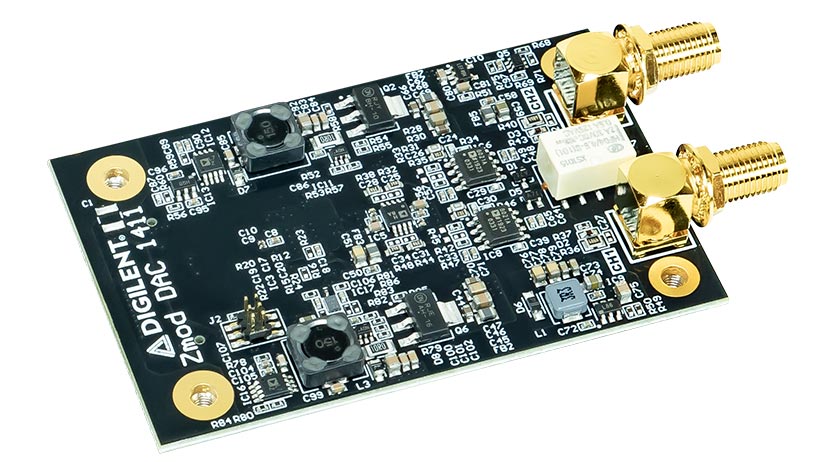

Zmod AWG 1411 SYZYGY-compatible Dual-channel 14-bit Digital-to-Analog Converter Module

What is the Zmod AWG 1411?

The Zmod AWG 1411 is one of Digilent's first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.

The Zmod AWG 1411 is equipped with Analog Devices AD9717 the dual channel, high speed, low power, 14-bit, 125MS/s Digital to Analog Converter (DAC). Driven by the SYZYGY carrier, the Zmod DAC can generate two simultaneous signals (50Ω, ±5V, single-ended, 14-bit, 100MS/s, 40MHz+ bandwidth). The analog outputs can be connected to a circuit using SMA cables.

When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR products. By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.

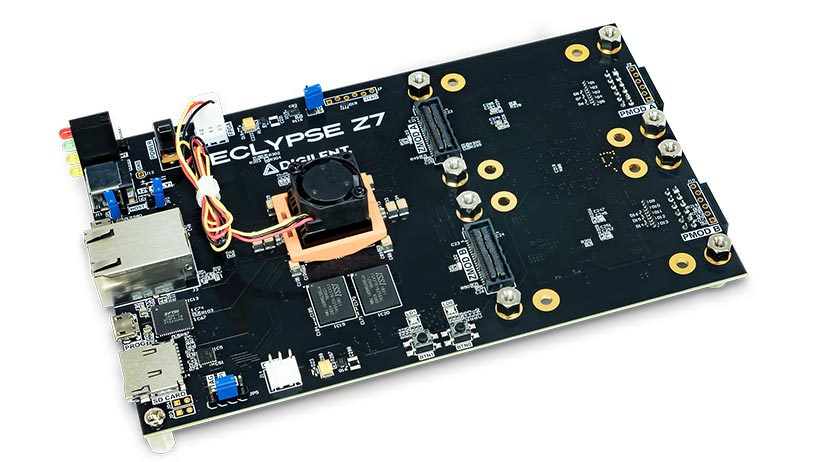

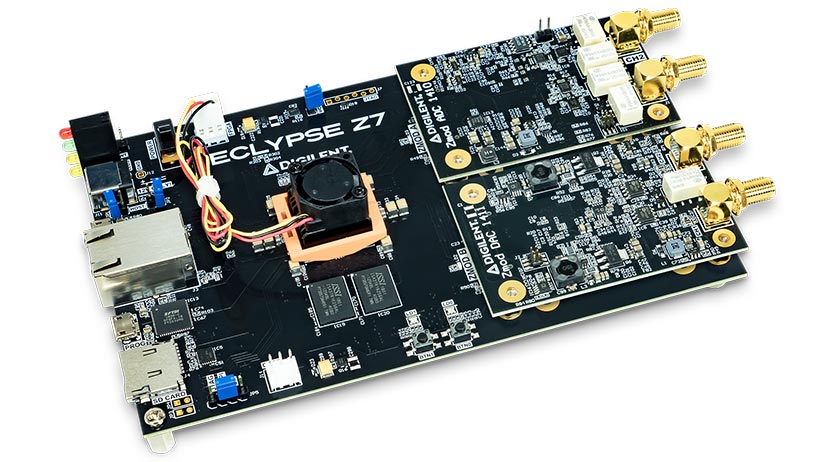

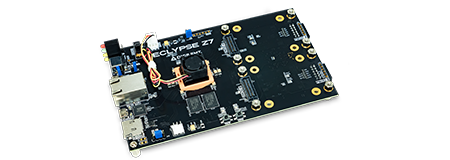

Eclypse Z7 Bundles Perfect platform for embedded measurement system

What is the Eclypse Z7 Bundles?

Digilent Eclypse Z7 bundle offers you a complete solution to create high-speed instrumentation, control, and measurement systems for edge-computing, medical, and communications applications. It includes Eclypse Z7, the Zmod Scope 1410 and Zmod AWG 1411. Both Zmods with 100 MSPS, 14-bit converters. You can customize the bundle by adding different Zmods.

The Zmod Scope 1410 is equipped with Analog Devices AD9648, the dual channel, high speed, low power, 14-bit, 105MS/s Analog to Digital Converter (ADC). Driven by the SYZYGY carrier, the Zmod ADC can acquire two simultaneous signals

(1MΩ, ±25V, single-ended, 14-bit, 100MS/s, 70MHz+ bandwidth). Analog inputs can be connected to a circuit using SMA cables.

The Zmod AWG 1411 is equipped with Analog Devices AD9717 the dual channel, high speed, low power, 14-bit, 125MS/s Digital to Analog Converter (DAC). Driven by the SYZYGY carrier, the Zmod DAC can generate two simultaneous signals (50Ω, ±5V, single-ended, 14-bit, 100MS/s, 40MHz+ bandwidth). The analog outputs can be connected to a circuit using SMA cables.

The bundle comes with a free example project and show users the implementation of a basic signal processing application on the Eclypse Z7 Bundles.

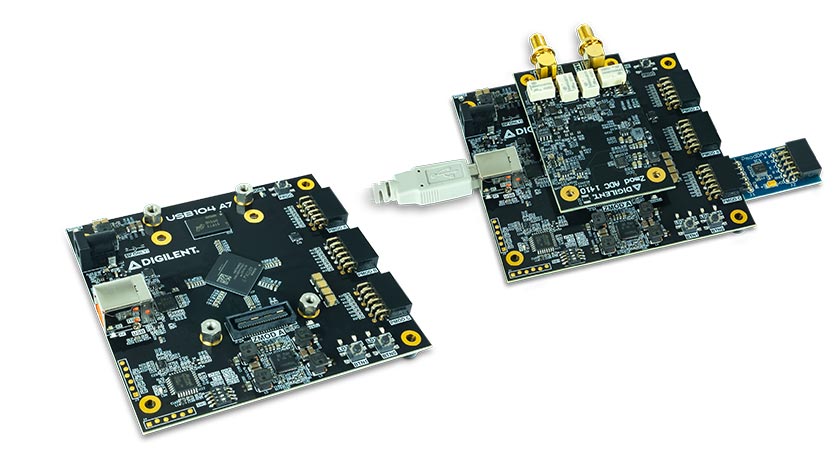

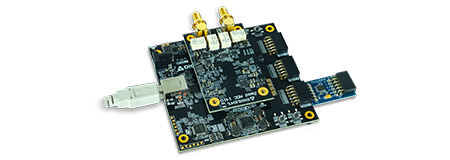

USB104 A7: Artix-7 FPGA Development Board with SYZYGY-compatible Expansion

What is the USB104 A7?

The Digilent USB104 A7 boasts power and versatility in a compact and rugged package for industrial SWaP applications. Designed for use across the industrial temperature range, the USB104 A7 features the Xilinx Artix-7 XC7A100T with an operating range from -40C-100C.* The USB104 A7 also features a SYZYGY port for high-speed data acquisition through the addition of Zmod expansion modules. This allows users to quickly develop and run customized FPGA-based data acquisition and signal processing applications on embedded systems. Ideal application areas include industrial automation, embedded OEM, telecommunications and mil-aero.

The USB104 A7 conforms to the small and rugged PC/104 board outline and mounting dimensions. I/O is provided with on-board LEDs and push-buttons. The SYZYGY compatible Zmod expansion is supplemented with three 12-pin Pmod ports. An onboard USB hub and controller conveniently interfaces the USB104 A7 with JTAG, UART, and a parallel data interface (DPTI) through a single connection. The DPTI data transfer interface provides host-to-FPGA data transfer and is easily managed with Digilent’s Adept 2 application. This ease of use and high-speed data transfer is especially useful for deployed systems.
